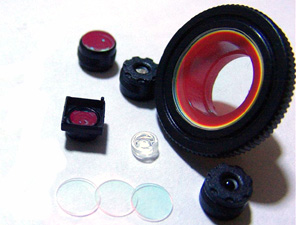

635nm UV-IR Cut Filter, Heat Blocker


Specifications:
Centre Wavelength(CWL):
Visible light, T=50% @ 635+/-10nm
FWHM(50% point):
400-620nm
Transmission:
Tave>90% at 400-620nm. Tave<1% @ 700-1100nm
Size:
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
Thickness:
0.3~3mm
Surface quality:
60/40~20/40
Clear aperture:
>90%, or full surface coatings
Substrate:
vary customized, such as B270, BK7, crystal, float or sodalime glass etc.
UV-IR cut off and visible red light cutoff
Applied for industrial camera or optical system, mobile camera, and digital microscope etc.

While cutting off the UV and IR light and passing the visible light, it will reduce the temperature from the light source and avoid the harmful effect to the optical components because of the UV and IR light.

Application: digital camera, Color CCD or CMOS cameras, Xenon or halogen lamps, stage lamps, biomedical systems etc.
