 Home > Filters > Bandpass Filters > Interference Filters > 1064nm Narrow Bandpass Laser Filter, Interference Filter

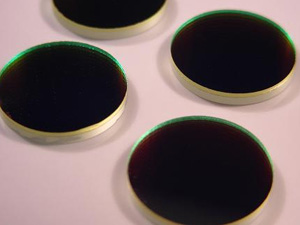

1064nm Narrow Bandpass Laser Filter, Interference Filter


Specifications:
Centre Wavelength(CWL):
1064nm, +/-2nm
FWHM(50% point):
6nm, 10nm, 20nm, 30nm
Transmission:
Tave>85% @ 1064nm
Size:
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
Thickness:
0.3~3mm
Surface quality:
60/40~20/40
Clear aperture:
>90%, or full surface coatings
Substrate:
vary customized, such as B270, BK7, crystal, float or sodalime glass etc.
specially designed for 1064nm LED or Laser light source
Ion source assisted coating to reach a heat resistance, such as 70 C-degree, small temperature drift.

1064nm Narrow Bandpass Filter, only transmit the small bandwidth spectrum as 1064+/-10nm, or 1064+/-15nm, while all other light has been blocked or reflected. This series of filters are specially designed for 1064nm LED or Laser light source. Widely used for medical treatment, biomedical identification, laser measuring equipment etc.
