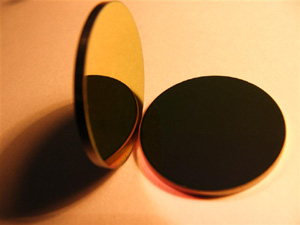

Mid IR and Far IR AR coatings


Specifications:

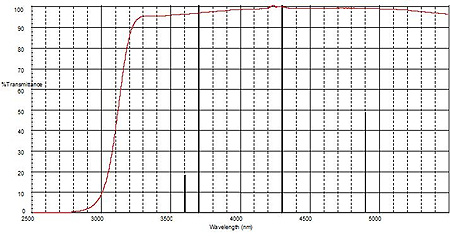

Transmission:
T>85% @ 3500-5000nm
Reflection:
Tave<=1% @ 200-3000nm
Size:
Customized, any size and shapes
Thickness:
2~3mm
Surface quality:
60/40~40/20
Clear aperture:
Full clear or with protective bevel
Substrate:
Silicon (Si), germanium (Ge), zinc selenide
AR coatings on the IR glass substrate for reach a high transmission of a specific Mid IR or Far IR range.
Bandpass coatings are also available on the special IR materials.

LenOpTec can offer the services to make AR or Bandpass coatings on Mid-IR and Far-IR materials, such as Si, Ge and Zinc selenide, to reach some special applications, such as thermo imaging systems, IR temperature measuring equipment, human body temperature measurement and some other medical equipment.
