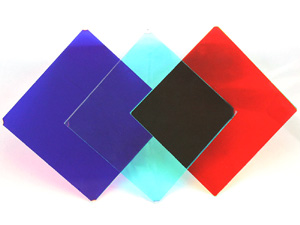

RGB Dichroic Filter


Specification:

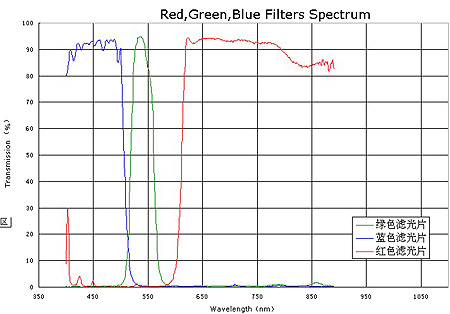

Centre Wavelength(CWL):
450nm, 536nm, 625nm for Blue, Green and Red
FWHM(50% point):
Customized for the application
Transmission:
Tmin>85%
Size:
customized, from 2x2mm to Dia. 110mm, +/-0.1mm
Thickness:
0.3~3mm
Surface quality:
60/40~20/40
Clear aperture:
>90%, or full surface coatings
Substrate:
vary customized, such as B270, BK7, crystal or sodalime glass etc.
Pure color by the précised spectrums control
Multi all-dielectric coatings under high vacuum coatings
Ion source assisted coatings to reach higher adhesion force
